Yet Another CAD Viewer

A CAD viewer capable of displaying OCP models (CadQuery/Build123d/...) in a web browser.

Features

• Cross-platform: works on any modern web browser.
• All GLTF 2.0 features (textures, PBR materials, animations...).
• All model-viewer features (smooth controls, augmented reality...).
• Load multiple models at once, load external models and even images as quads.
• View and interact with topological entities: faces, edges, vertices and locations.
• Control clipping planes and transparency of each model.
• Select any entity and measure bounding box size and distances.
• Fully-featured static deployment: just upload the viewer and models to your server.
• Hot reloading while editing the CAD model (using the yacv-server package).

Usage

The example is a fully working project that shows how to use the viewer.

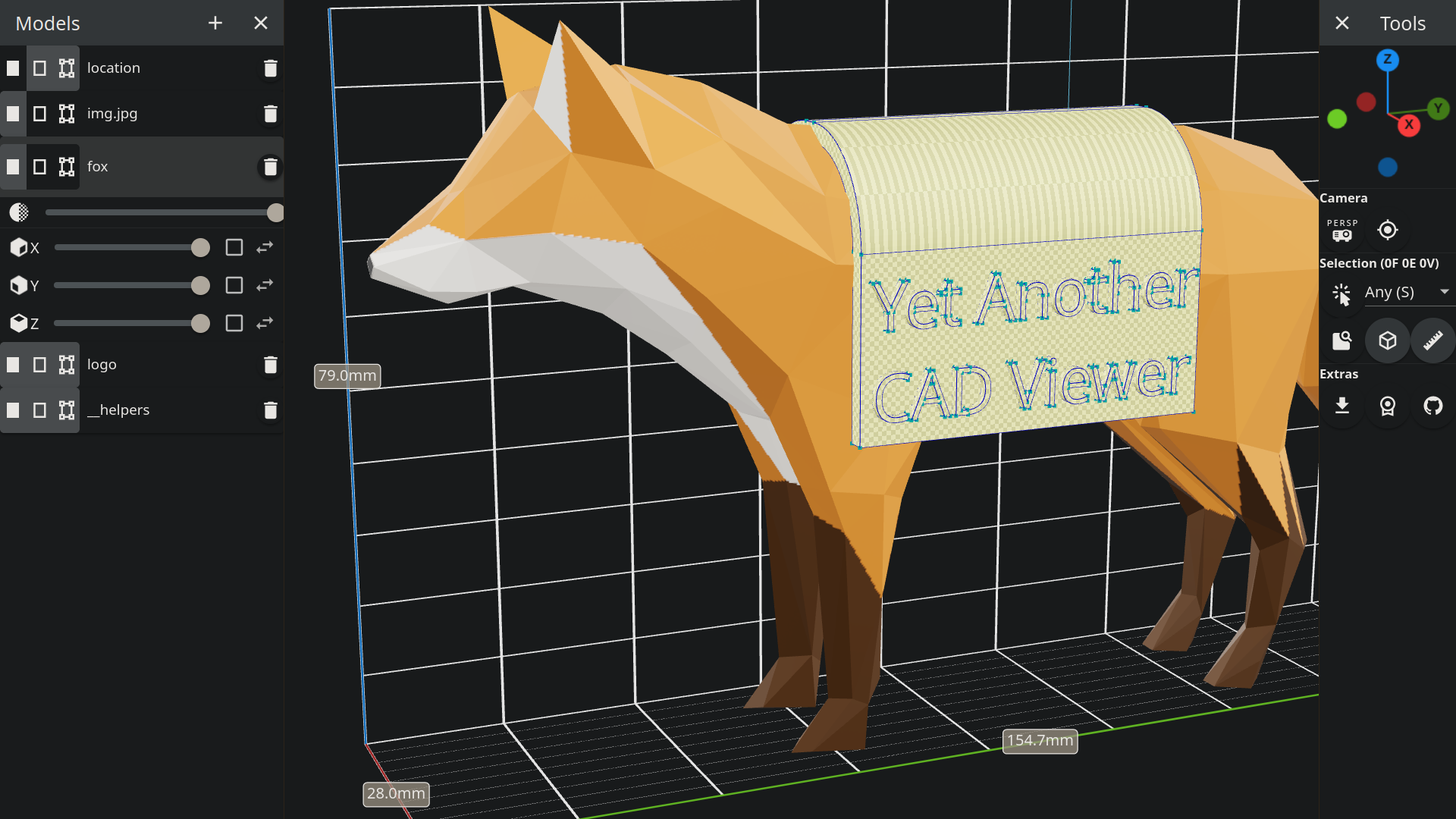

You can play with the latest demo here (or without animation).
