Yet Another CAD Viewer
A CAD viewer capable of displaying OCP models (CadQuery/Build123d/...) in a web browser.
Features
- Cross-platform: works on any modern web browser.
- All GLTF 2.0 features (textures, PBR materials, animations...).
- All model-viewer features (smooth controls, augmented reality...).
- Load multiple models at once, load external models and even images as quads.
- Control clipping planes and transparency of each model.
- View and interact with topological entities: faces, edges, vertices and locations.
- Select any entity and measure bounding box size and distances.
- Hot reloading while editing the CAD model (using the
yacv-serverpackage). - Fully-featured static deployment: just upload the viewer and models to your server.
- Build123d playground! code and build your model fully inside the browser: demo.
Usage
The example is a fully working project that shows how to use the viewer.

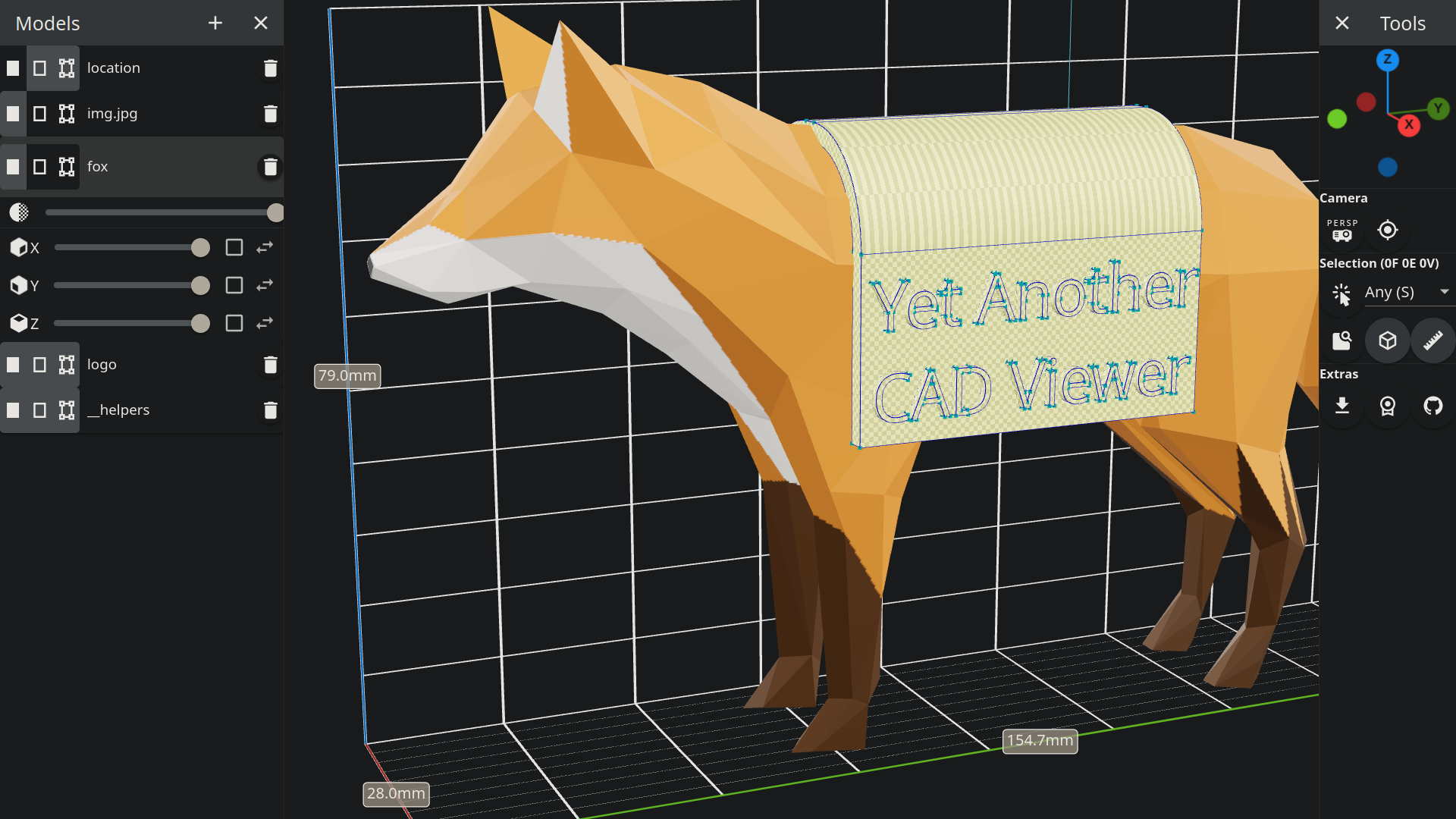

You can play with the latest demo here (or without animation).
Related projects
- cq-studio provides an alternative workflow that detects file changes instead of relying on an interactive environment like Jupyter for hot-reloading. Uses the same backend and frontend behind the scenes.
- build123d-docker provides docker images for Yet Another CAD Viewer and other projects, with automatic updates.
