- v4.6.0 Fix Bugs in Channels Light and RGBsingle-Light, Fix Icon-Colors with interpolateColors (Color, ColorTemp, Brightness), Fix ON instead of ON_ACTUAL for writing DP - v4.6.0.1 Add Functions to Calculate Colors of RGBsingle Icons (Darken and CT (Kelvin/Mired)) - v4.6.0.1 Fix Light-Icons if Color-Temperature uses Mired instead of Kelvin (500 Mired - 153 Mired = 2000 K - 6536 K) - v4.6.0.1 Add icon2 to Lights - v4.6.0.1 Add Functions to Calculate Colors of RGB and CT Icons (Darken and CT (Kelvin/Mired)) - v4.6.0.1 Add function cie_to_rgb, Add CIE Channel to Lights
NSPanel Lovelace UI
If you like this project consider buying me a pizza 🍕
NsPanel Lovelace UI is a Firmware for the nextion screen inside of NSPanel in the Design of HomeAssistant's Lovelace UI Design.
Visit https://docs.nspanel.pky.eu/ for installation instructions and documentation of the configuration.
Supported Home Automation Systems:
- Home Assistant - AppDaemon Backend
- ioBroker - 3rd-party Typescript Backend maintained by @britzelpuf and @Armilar
NsPanel needs to be flashed with Tasmota (or through a 3rd-party Component with ESPHome)
EU Model and US Model supported (in portrait and landscape orientation)
Features
- Entities Page with support for cover, switch, input_boolean, binary_sensor, sensor, button, number, scenes, script, input_button and light, input_text (read-only), lock, fan, timer and automation
- Grid Page with support for cover, switch, input_boolean, button, scenes, light, lock, timer and automation
- Detail Pages for Lights (Brightness, Temperature and Color of the Light) and Covers (Position)
- Thermostat Page
- Media Player Card
- Alarm Control Card
- Screensaver Page with Time, Date and Weather Information
- Card with QrCode to display WiFi Information
- Localization possible (currently 38 languages)
- Everything is dynamically configurable by a yaml config, no need to code or touch Nextion Editor
It works with Tasmota and MQTT. To control the panel and update it with content from HomeAssistant, there is an AppDaemon App.

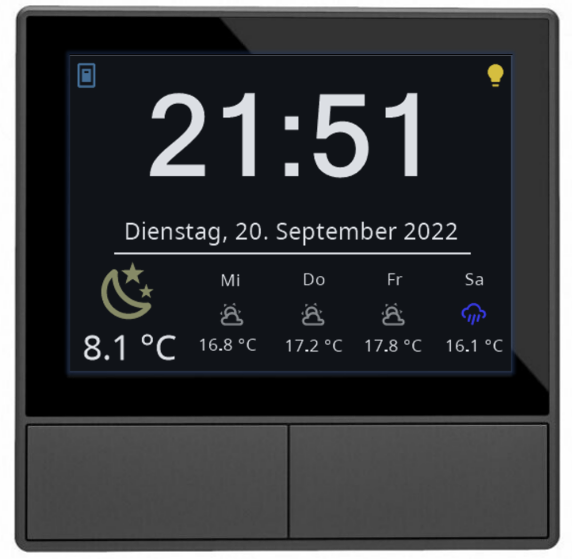

See the following picture to get an idea of the look of this firmware for NSPanel.

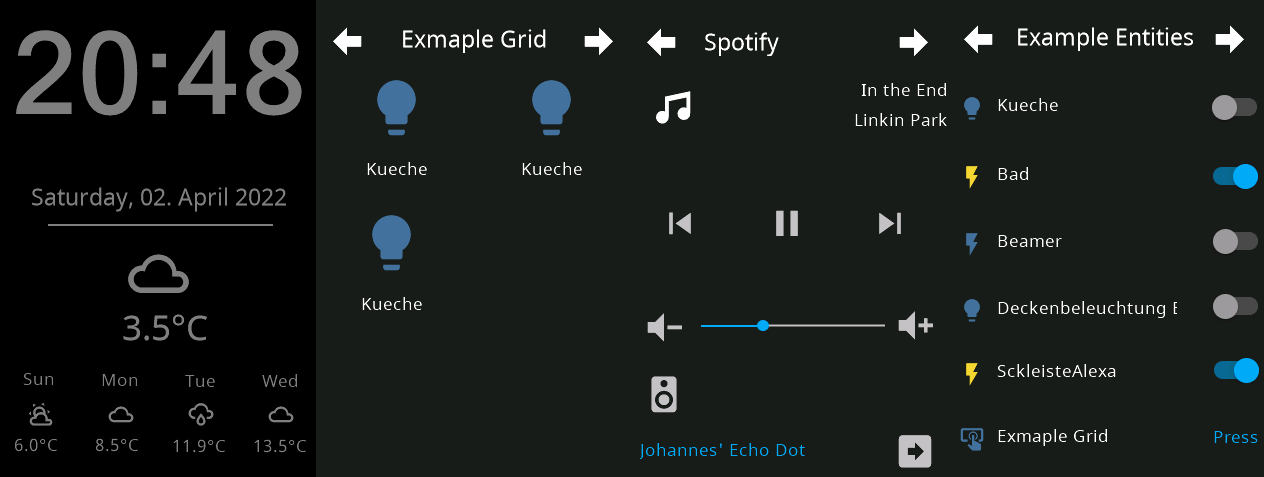

Some (not all) screenshots from the US Portrait Version:
Documentation
Visit https://docs.nspanel.pky.eu/ for installation instructions and documentation of the configuration.
Other Resources
Alternative Backends for other SmartHome Systems
ioBroker: https://forum.iobroker.net/topic/58170/sonoff-nspanel-mit-lovelace-ui/
IP Symcon: https://community.symcon.de/t/beta-modul-nspanel-lovelace-ui/130109
SmartHomeNG: https://github.com/sisamiwe/shng-nspanel-plugin
OpenHAB: https://github.com/donoo/o2n2l
NodeRed: https://github.com/laluz742/node-red-contrib-nspanel-lui
ESPHome without any Backend: https://github.com/olicooper/esphome-nspanel-lovelace-native
