NSPanel Lovelace UI

If you like this project consider buying me a pizza 🍕

NsPanel Lovelace UI is a Firmware for the nextion screen inside of NSPanel in the Design of HomeAssistant's Lovelace UI Design.

EU Model and US Model supported (in portrait and landscape orientation)

Content of the screen is controlled by a AppDaemon Python Script installed on your HomeAssistant Instance.

Or an TypeScript on your ioBroker Instance in case you are an ioBroker User.

NsPanel needs to be flashed with Tasmota (or upcoming with ESPHome)

Features

• Entities Page with support for cover, switch, input_boolean, binary_sensor, sensor, button, number, scenes, script, input_button and light, input_text (read-only), lock, fan and automation
• Grid Page with support for cover, switch, input_boolean, button, scenes, light, lock and automation
• Detail Pages for Lights (Brightness, Temperature and Color of the Light) and for Covers (Position)
• Thermostat Page
• Media Player Card
• Alarm Control Card
• Screensaver Page with Time, Date and Weather Information
• Card with QrCode to display WiFi Information
• Localization possible (currently 38 languages)
• Everything is dynamically configurable by a yaml config, no need to code or touch Nextion Editor

It works with Tasmota and MQTT. To control the panel and update it with content from HomeAssistant there is an AppDaemon App.

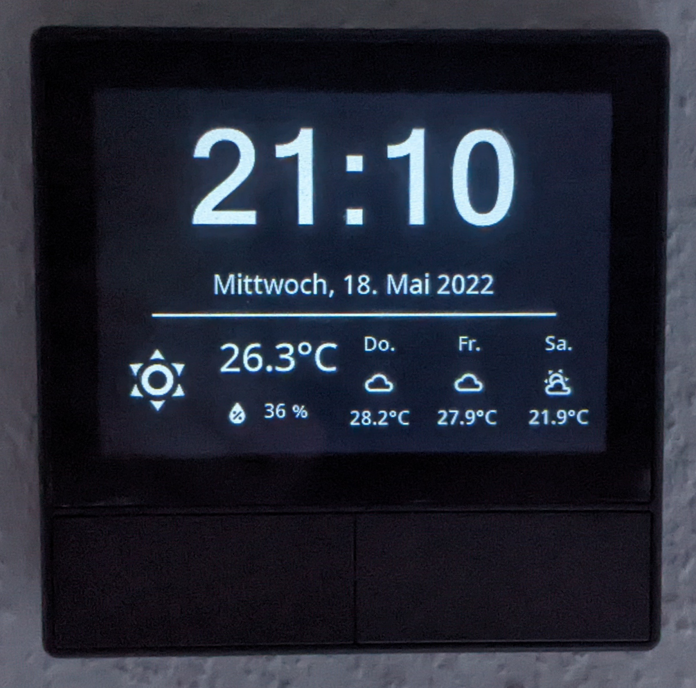

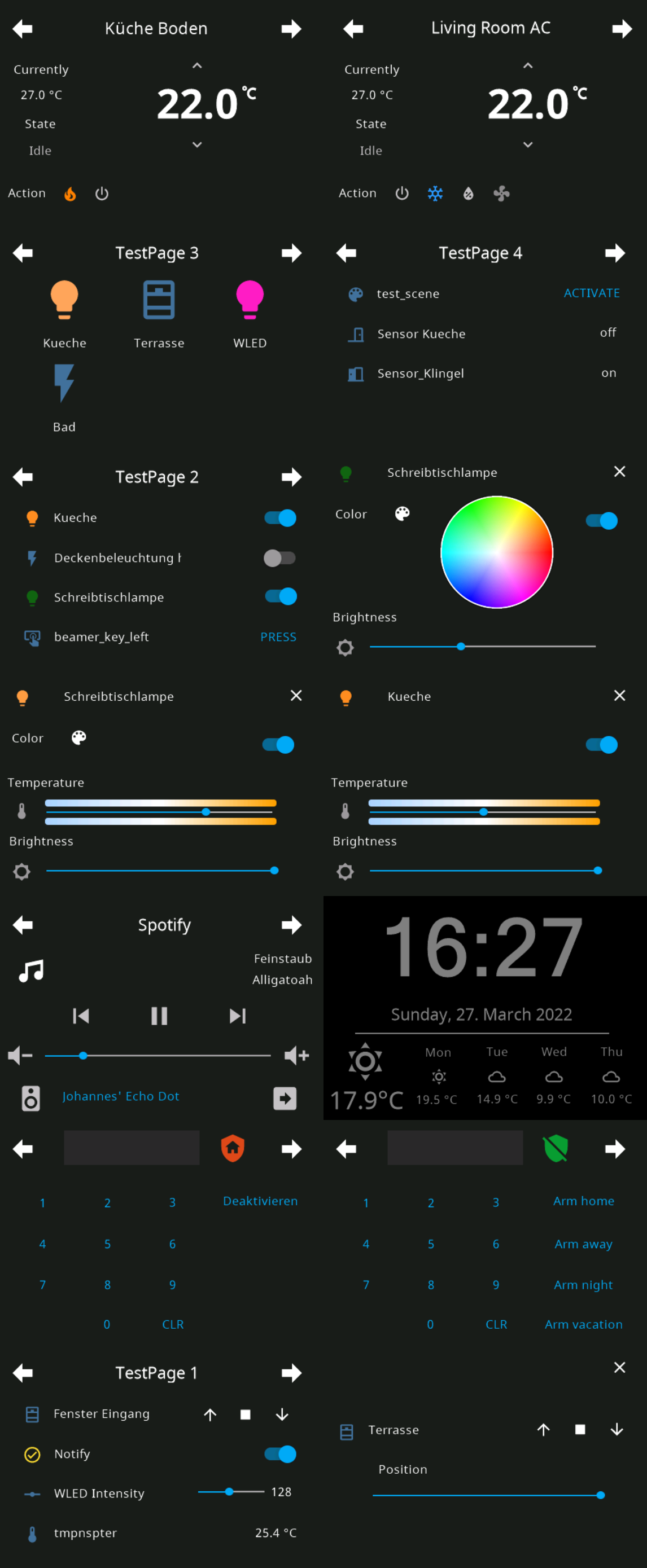

See the following picture to get an idea of the look of this firmware for NSPanel.

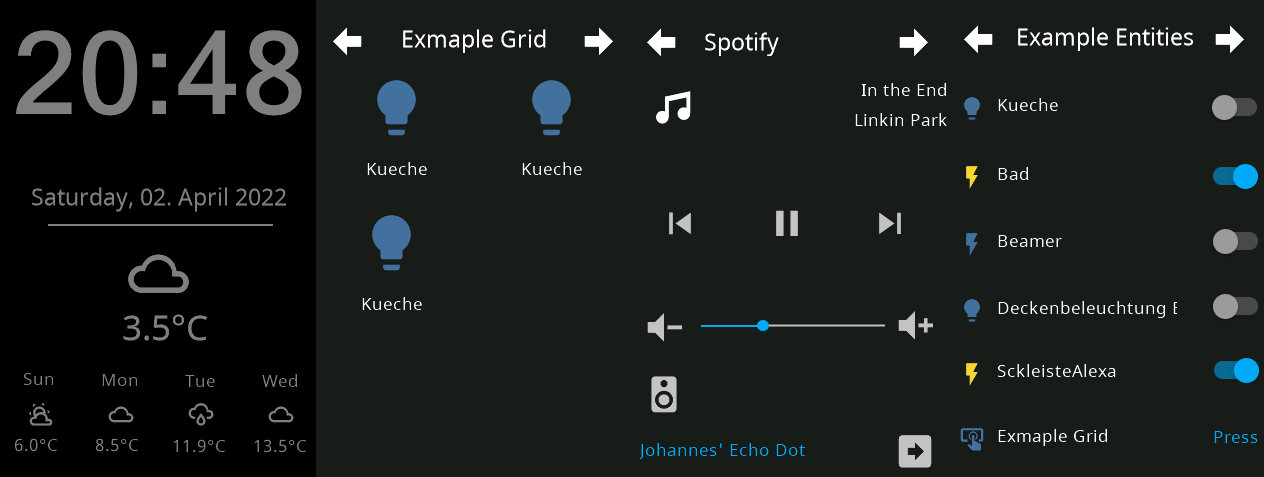

Some (not all) screenshots from the US Portrait Version:

TLDR

1. Install Tasmota to NSPanel
2. Install Berry Driver in Tasmota and setup MQTT
3. Flash Nextion Firmware
4. Install AppDaemon, setup MQTT and install Backend Application

For more detailed Instructions see the following Sections:

• Requirements

• Installation - Home Automation Part (Home Assistant)

• Installation - Home Automation Part (IoBroker)

• Installation - NSPanel Part (Firmware)

• Configuration

  • Configuring the MQTT integration in AppDaemon
  • Configure your NSPanel in AppDaemon

• How to update

• FAQ

Requirements

• NSPanel
• USB to Serial TTL Adapter
• Running Instance of the Home Automation Platform of your Choise
  • Running Home Assistant Instance
    • with installed MQTT Broker
  • Running ioBroker Instance
    • with installed MQTT Broker

Installation - Home Automation Part (Home Assistant)

This section describes the Installation Steps for HomeAssistant, follow each step.

1. Installing HomeAssistant Add-Ons

Installing AppDaemon

The backend application for HomeAssistant is written in a python for AppDaemon. This means it requires a working and running installation of AppDaemon.

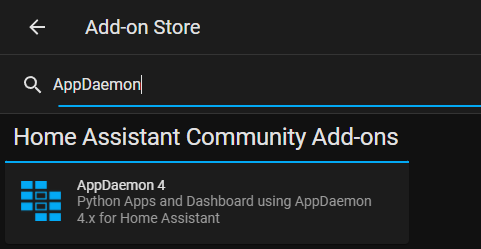

The easiest way to install it is through Home Assistant's Supervisor Add-on Store, it will be automaticly connected to your Home Assistant Instance.

Add babel package to AppDaemon Container (Optional)

For localisation (date in your local language) you need to add the python package babel to your AppDaemon Installation.

Installing Studio Code Server (optional, recommended)

You will need a way to edit the apps.yaml config file in the Appdaemon folder. Install Studio Code Server from Home Assistant's Supervisor Add-on Store to easily edit configuration Files on your HomeAssistant Instance.

2. Installing HomeAssistant Community Store

Installing HACS

HACS is the Home Assistant Community Store and allows for community integrations and automations to be updated cleanly and easily from the Home Assistant web user interface. It's simple to install the AppDaemon app without HACS, but keeping up to date requires manual steps that HACS will handle for you: you will be notified of updates, and they can be installed by a click on a button.

If you want to use HACS, you will have to follow their documentation on how to install HACS.

3. Installing Lovelace AppDaemon Backend Application

Installing AppDaemon Backend Application

To install Lovelace UI Backend App with HACS, you will need to make sure that you enabled AppDaemon automations in HACS, as these are not enabled by default:

1. Click on Configuration on the left menu bar in Home Assistant Web UI
2. Select Devices & Services
3. Select Integrations
4. Find HACS and click on Configure
5. In the window that opens, make sure that Enable AppDaemon apps discovery & tracking is checked, or check it and click Submit
6. If you just enabled this (or just installed HACS), you might have to wait a few minutes as all repositories are being fetched; you might hit a GitHub rate limit, which might then require you to wait a few hours for HACS to be fully configured. In this case, you won't be able to proceed to the next steps until HACS is ready.

Now, to install NSPanel Lovelace UI Backend with HACS, follow these steps:

1. Click on HACS on the left menu bar in Home Assistant Web UI
2. Click on Automations in the right panel
3. Click on Explore & download repositories in the bottom right corner
4. Search for NSPanel, and click on NSPanel Lovelace UI Backend in the list that appears

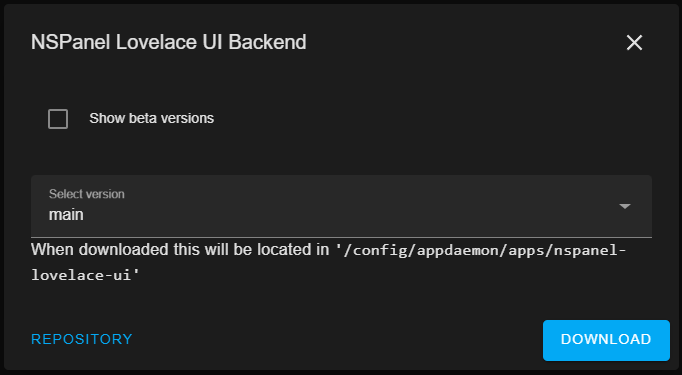

5. In the bottom right corner of the panel that appears, click on Download this repository with HACS
6. A confirmation panel will appear, click on Download, and wait for HACS to proceed with the download
7. The Backend Application is now installed, and HACS will inform you when updates are available

Installation - Home Automation Part (IoBroker)

If you are looking for an ioBroker Integration instead of HomeAssistant take a look into the Readme of the iobroker folder. Thanks to britzelpuf for this integration.

Installation - NSPanel Part

This section describes how to free your nspanel from stock firmware and get it ready for Lovelace UI 🎉

You only need to do one Tasmota OR ESPHome

Installation Instructions for Tasmota (Recommended)

Flash Tasmota to your NSPanel

You need to connect to your nspanel via serial and flash tasmtoa tasmota32-nspanel.factory.bin to your NSPanel. You can use the Tasmota Web Installer to do so. Tasmota Web Installer Make sure to come back to this guide, before uploading the nspanel.be/autoexec.be files. For more deatils see the NSPanel Page of the Tasmota Template Repository.

Configure Tasmota Template for NSPanel

Configure the NSPanel template for Tasmota. (Go to Configuration and Configure Other and paste the template there, make sure to tick the activate checkbox)

You can use the following template or copy the one on the Tasmota Template Repo Site.

{"NAME":"NSPanel","GPIO":[0,0,0,0,3872,0,0,0,0,0,32,0,0,0,0,225,0,480,224,1,0,0,0,33,0,0,0,0,0,0,0,0,0,0,4736,0],"FLAG":0,"BASE":1,"CMND":"ADCParam 2,11200,10000,3950 | Sleep 0 | BuzzerPWM 1"}

After a reboot of tasmota your screen will light up with the stock display firmware.

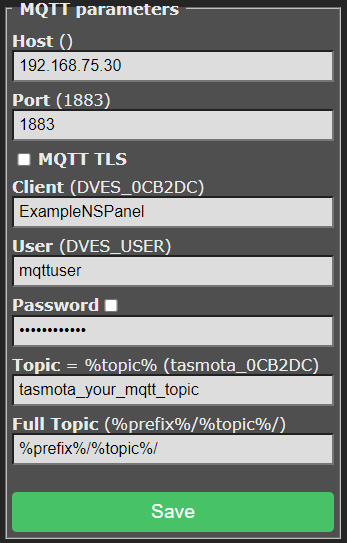

Setup your MQTT Server in Tasmota

Configure your MQTT Server in Tasmota. See Tasmota MQTT Documentation for more details.

Upload Berry Driver to Tasmota

1. Download the autoexec.be from the repository: Berry Driver

2. Go to Consoles > Manage File System in Tasmota and upload the previously downloaded file.

3. Restart your NSPanel

Flash Firmware to Nextion Screen

Note for ioBroker Users: Check the Release Notes, if the ioBroker Backend is not up to date with the current release there will be a note and you have to flash the latest compatible version from there.

Use your own Webserver

Upload the nspanel.tft from the lastest release to a Webserver (for example www folder of Home Assistant) and execute the following command in Tasmota Console. (Development Version: tft file from HMI folder)

Webserver must be HTTP, HTTPS is not supported, due to limitations of berry lang on tasmota

FlashNextion http://ip-address-of-your-homeassistant:8123/local/nspanel.tft

Use my webserver

Due the limitations of Berry, it's not possible to download the tft file directly from github, so I'm also renting a small server where you can download the file via HTTP.

Use the one following commands to flash the latest release from this repository, just execute the following Command in Tasmota:

EU Version: FlashNextion http://nspanel.pky.eu/lui-release.tft

US Version Portrait: FlashNextion http://nspanel.pky.eu/lui-us-p-release.tft

US Version Landscape: FlashNextion http://nspanel.pky.eu/lui-us-l-release.tft

Installation Instructions for ESPHome

Support for ESPHome is WIP, see this third-party ESPHome component which allows using ESPHome instead of Tasmota.

Configuration

Note this is the documentation of the current development version and might have changed since latest release, so see the documentation of the current release visit:

https://github.com/joBr99/nspanel-lovelace-ui/tree/v2.9.3

Configuring the MQTT integration in AppDaemon

For the app to work you need a working MQTT Configuration in AppDaemon. Please add the configuration of your mqtt server, user and password to your existing appdaemon.yaml

NOTE: This are not the options of the AppDaemon Addon in HomeAssistant. You will find this file under: config/appdaemon/appdeamon.yaml

---
secrets: /config/secrets.yaml
appdaemon:
  latitude: 52.0
  longitude: 4.0
  elevation: 2
  time_zone: Europe/Berlin
  plugins:
    HASS:
      type: hass
    MQTT:
      type: mqtt
      namespace: mqtt
      client_id: "appdaemon"
      client_host: 192.168.75.30
      client_port: 1883
      client_user: "mqttuser"
      client_password: "mqttpassword"
      client_topics: NONE
http:
  url: http://127.0.0.1:5050
admin:
api:
hadashboard:

Please see appdaemon.yaml as an exmaple.

Configure your NSPanel in AppDaemon

Confiure your NSPanel as you like, you need to edit the apps.yaml inside of your Appdaemon config folder. You can have multiple nspanel sections. There are some more exmaples in the appdaemon folder of this repo.

---
nspanel-1:
  module: nspanel-lovelace-ui
  class: NsPanelLovelaceUIManager
  config:
    panelRecvTopic: "tele/tasmota_your_mqtt_topic/RESULT"
    panelSendTopic: "cmnd/tasmota_your_mqtt_topic/CustomSend"
    updateMode: "auto-notify"
    sleepTimeout: 20
    #sleepBrightness: 10
    sleepBrightness:
      - time: "7:00:00"
        value: 10
      - time: "23:00:00"
        value: 0
    locale: "de_DE" # used for translations in translations.py and for localized date if babel python package is installed
    screensaver:
      entity: weather.k3ll3r
    cards:
      - type: cardEntities
        entities:
          - entity: switch.example_item
            name: NameOverride
            icon: mdi:lightbulb
          - entity: light.example_item
          - entity: cover.example_item
          - entity: input_boolean.example_item
        title: Example Entities 1
      - type: cardEntities
        entities:
          - entity: switch.example_item
          - entity: delete
          - entity: cover.example_item
          - entity: input_boolean.example_item
        title: Example Entities 2
      - type: cardEntities
        entities:
          - entity: binary_sensor.example_item
          - entity: sensor.example_item
          - entity: button.example_item
          - entity: number.example_item
        title: Example Entities 3
      - type: cardEntities
        entities:
          - entity: scenes.example_item
          - entity: script.example_item
          - entity: button.example_item
          - entity: input_button.example_item
        title: Example Entities 4
      - type: cardGrid
        entities:
          - entity: light.example_item
          - entity: switch.example_item
          - entity: delete
          - entity: button.example_item
          - entity: cover.example_item
          - entity: delete # delete at the end is optional
        title: Exmaple Gird
      - type: cardThermo
        entity: climate.example_item
      - type: cardMedia
        entity: media_player.example_item
      - type: cardAlarm
        entity: alarm_control_panel.alarmo
      - type: cardQR
        title: Guest Wifi
        qrCode: "WIFI:S:test_ssid;T:WPA;P:test_pw;;"
        entities:
          - entity: iText.test_ssid
            name: Name
            icon: mdi:wifi
          - entity: iText.test_pw
            name: Password
            icon: mdi:key

key	optional	type	default	description
module	False	string		The module name of the app.
class	False	string		The name of the Class.
config	False	complex		Config/Mapping between Homeassistant and your NsPanel

Possible configuration values for config key

key	optional	type	default	description
panelRecvTopic	False	string	tele/tasmota_your_mqtt_topic/RESULT	The mqtt topic used to receive messages.
panelSendTopic	False	string	cmnd/tasmota_your_mqtt_topic/CustomSend	The mqtt topic used to send messages.
updateMode	True	string	auto-notify	Update Mode; Possible values: "auto", "auto-notify", "manual"
model	True	string	eu	Model; Possible values: "eu", "us-l" and "us-p"
sleepTimeout	True	integer	20	Timeout for the screen to enter screensaver, to disable screensaver use 0
sleepBrightness	True	integer/complex	20	Brightness for the screen on the screensaver, see example below for complex/scheduled config.
screenBrightness	True	integer/complex	100	Brightness for the screen during usage, config format is the same as sleepBrightness.
sleepTracking	True	string	None	Forces screensaver brightness to 0 in case entity state is not_home or off, can be a group, person or device_tracker entity.
sleepOverride	True	complex	None	Allows overriding of the sleepBrightness if entity state is on, true or home. Overrides sleepBrightness but sleepTracking takes precedence.
locale	True	string	en_US	Used by babel to determinante Date format on screensaver, also used for localization.
dateFormatBabel	True	string	full	formatting options on https://babel.pocoo.org/en/latest/dates.html?highlight=name%20of%20day#date-fields
timeFormat	True	string	%H:%M	Time Format on screensaver. Substring after ? is displayed in a seperate smaller textbox. Useful for 12h time format with AM/PM "%I:%M ?%p"
dateAdditonalTemplate	True	string	""	Addional Text dispayed after Date, can contain a Homeassistant Template Example " - {{ states('sun.sun') }}"
timeAdditonalTemplate	True	string	""	Addional Text dispayed below Time, can contain a Homeassistant Template
dateFormat	True	string	%A, %d. %B %Y	date format used if babel is not installed
cards	False	complex		configuration for cards that are displayed on panel
screensaver	True	complex		configuration for screensaver
hiddenCards	True	complex		configuration for cards that can be accessed though navigate items

Possible languages for locale config key

• af_xx - Afrikaans
• ar_xx - Arabic
• bg_xx - Bulgarian
• ca_xx - Catalan
• cs_xx - Czech
• da_xx - Danish
• de_xx - German
• el_xx - Greek
• en_xx - English
• es_xx - Spanish
• et_xx - Estonian
• fa_xx - Persian
• fi_xx - Finnish
• fr_xx - French
• he_xx - Hebrew
• hr_xx - Croatian
• hu_xx - Hungarian
• hy_xx - Armenian
• id_xx - Indonesian
• is_xx - Icelandic
• it_xx - Italian
• lb_xx - Luxembourgish
• lt_xx - Lithuanian
• lv_xx - Latvian
• nb_xx - Norwegian
• nl_xx - Dutch
• nn_xx - Norwegian
• pl_xx - Polish
• pt_xx - Portuguese
• ro_xx - Romanian
• ru_xx - Russian
• sk_xx - Slovak
• sl_xx - Slovenian
• sv_xx - Swedish
• th_xx - Thai
• tr_xx - Turkish
• uk_xx - Ukrainian
• vi_xx - Vietnamese

Possible configuration values for a card in card config

key	optional	type	default	description
type	False	string	None	Used by navigate items
entities	False	complex	None	contains entities of the card, only valid on cardEntities and cardGrid and cardQR
title	True	string	None	Title of the Page
entity	False	string	None	contains the entity of the current card, valid for cardThermo, cardAlarm and cardMedia
key	True	string	None	Used by navigate items
mediaControl	True	string	None	Only valid on cardMedia, contains the action executed on pressing the top left media icon. (useful to navigate to a hidden card or start a script)
alarmControl	True	complex	None	Only valid on cardAlarm, contains the action executed on pressing the left bottom icon, by default this button is used to show a list of open sensors on a failed attempt to arm.

Possible configuration values for entities key

key	optional	type	default	description
entity	False	string	None	name of ha entity
name	True	string	None	Used to override names
icon	True	string	None	Used to override icons
color	True	array	None	Overwrite color of entity color: [255, 0, 0]
state	True	string	None	Only displayed if Entity state is equal to this value
state_not	True	string	None	Only displayed if Entity state is unequal to this value
status	True	string	None	Only valid for navigate items, adds a entity to track state for the icon

Override Icons or Names

To overwrite Icons or Names of entities you can configure an icon and/or name in your configuration, please see the following example. Only the icons listed in the Icon Cheatsheet are useable.

        entities:
          - entity: light.test_item
            name: NameOverride
            icon: mdi:lightbulb

It is also possible to configure different icon overwrites per state:

            icon:
                "on": mdi:lightbulb
                "off": mdi:lightbulb

Possible configuration values for screensaver config

key	optional	type	default	description
entity	True	string	weather.example	weather entity from homeassistant
weatherUnit	True	string	celsius	unit for temperature, valid values are celsius or fahrenheit
weatherOverrideForecast1	True	complex	None	sensor entity from home assistant here to overwrite the first weather forecast item on the screensaver
weatherOverrideForecast2	True	complex	None	sensor entity from home assistant here to overwrite the second weather forecast item on the screensaver
weatherOverrideForecast3	True	complex	None	sensor entity from home assistant here to overwrite the third weather forecast item on the screensaver
weatherOverrideForecast4	True	complex	None	sensor entity from home assistant here to overwrite the forth weather forecast item on the screensaver
statusIcon1	True	complex	None	status icon left to the date string, config similar to weatherOverride
statusIcon2	True	complex	None	status icon right to the date string, config similar to weatherOverride
doubleTapToUnlock	True	boolean	False	requires to tap screensaver two times
alternativeLayout	True	boolean	False	alternative layout with humidity
theme	True	complex		configuration for theme
defaultCard	True	string	None	default page after exiting screensaver; only works with top level cards defined in cards; needs to be a navigation item, see subpages (navigate.type_key) This config option will also be evaluated as a HomeAssistant Template.
key	True	string	None	Used by navigate items

Example for the weatherOverride config options:

      weatherOverrideForecast4:
        entity: sensor.example_item
        name: name
        icon: mdi:lightbulb

Possible configuration values for screensaver theme config

key	option	type	default	description
background	True	list	Black	[R, G, B]
time	True	list	White	[R, G, B]
timeAMPM	True	list	White	[R, G, B]
date	True	list	White	[R, G, B]
tMainIcon	True	list	White	[R, G, B]
tMainText	True	list	White	[R, G, B]
tForecast1	True	list	White	[R, G, B]
tForecast2	True	list	White	[R, G, B]
tForecast3	True	list	White	[R, G, B]
tForecast4	True	list	White	[R, G, B]
tF1Icon	True	list	White	[R, G, B]
tF2Icon	True	list	White	[R, G, B]
tF3Icon	True	list	White	[R, G, B]
tF4Icon	True	list	White	[R, G, B]
tForecast1Val	True	list	White	[R, G, B]
tForecast2Val	True	list	White	[R, G, B]
tForecast3Val	True	list	White	[R, G, B]
tForecast4Val	True	list	White	[R, G, B]
bar	True	list	White	[R, G, B]
tMainIconAlt	True	list	White	[R, G, B]
tMainTextAlt	True	list	White	[R, G, B]
tMRIcon	True	list	White	[R, G, B]
tMR	True	list	White	[R, G, B]
autoWeather	True	boolean	false	Set to true to enable weather icons to change depending on state e.g. blue for rainy. Any custom colors in tMainIcon tF1Icon tF2Icon tF3Icon tF4Icon take precedence.

If autoWeather: true is set. You may also overwrite the default color mapping for any valid weather state provided by homeassistant e.g. rainy: [50, 50, 255] or sunny: [255, 255, 0]

Specify colours as red green and blue values from 0-255 e.g. [255, 0, 0] for red or [0, 0, 255] for blue. These are translated internally to RGB565 (note that this has lower color depth so the colours may not appear the same). Also note that the screen has a low contrast ratio, so colors look sigificantly different at full display brightness and lowest brightness.

Example for the theme config:

    screensaver:
      theme:
        autoWeather: true

For complex setups where you want to reuse the theme over multiple panels see the config exmaples in the appdaemon folder.

Schedule sleep brightness

It is possible to schedule a brightness change for the screen at specific times.

    sleepBrightness:
      - time: "7:00:00"
        value: 10
      - time: "23:00:00"
        value: 0

    sleepBrightness:
      - time: "sunrise"
        value: 10
      - time: "sunset + 1:00:00"
        value: 0

sleepTracking overrides this setting and sets the brightness to 0 if the state of the configured Home Assistant entity is off or not_home. You may also use a Home Assistant group to track multiple entities.

sleepOverride overrides sleepBrightness but does not take precedence over sleepTracking. This is useful if, for example, you want your NSPanel to be brighter than usual if your light is on or if you want to override a panel dimming if you are in the room.

The following example configuration does nothing during the day but at night, if the bedroom light is on the NSPanel brightness will be 20 instead of 0.

    sleepBrightness:
      - time: "sunrise"
        value: 20
      - time: "sunset"
        value: 0
    sleepOverride:
      entity: light.bedroomlight
      brightness: 20

Also it is possible to configure a text or a character by using "text:" as a prefix instead of an icon. icon: text:X

Fahrenheit on cardThermo

      - type: cardThermo
        entity: climate.example_item
        temperatureUnit: fahrenheit

Subpages

You can configure entities with with the prefix navigate, that are navigating to cards, in case it's hidden card, the navigation items will change and the arrow is bringing you back to the privious page.

          - entity: navigate.cardGrid_testKey

will allow you to navigate to a cardGrid page with the configured key testKey

    hiddenCards:
      - type: cardGrid
        title: Exmaple Grid
        entities:
          - entity: light.test_item
        key: testKey

Change behaviour of hardware buttons

Tasmota Rules

You can configure the buttons to mimic an UI element on the screen by configuring tasmota rules.

The following rule will change the behaviour of the two buttons to do page navigation.

Rule2 on Button1#state do Publish tele/%topic%/RESULT {"CustomRecv":"event,buttonPress2,hwbtn,bPrev"} endon on Button2#state do Publish tele/%topic%/RESULT {"CustomRecv":"event,buttonPress2,hwbtn,bNext"} endon

Rule2 1

Decouple buttons from controlling power outputs

If you do not want your NSPanel physical buttons to trigger the relays and prefer to have them as software configurable buttons, open the Tasmota console of your NSPanel and enter the following:

SetOption73 1

Your relays will now appear as switches in HomeAssistant and you can control your buttons by using automations:

You may reverse this change by entering the following in the Tasmota console of your NSPanel:

SetOption73 0

Please note: Doing this will mean that if HomeAssistant is not working for any reason your buttons will not function correctly.

Sending Notifications to the Panel

There are two notification types, that can be triggered by sending a command over mqtt to the panel here are examples for homeassistant scripts:

Seperate Page

This is the notification used by the backend for updates, opening it requires to the following commands to the CustomSend Topic:

pageType popupNotify

entityUpdateDetail~internalName~heading~headingColor~button1text~button1color~button2text~tB2Color~notificationText~textColor~sleepTimeout

It is possible to exit from the page by sending exitPopup

Send Message to the Panel combined with a buzzer sound:

nspanel_popup_notification:
 alias: Popup Notification
 sequence:
 - service: mqtt.publish
   data:
     topic: cmnd/tasmota_NsPanelTerrasse/Backlog
     payload: CustomSend pageType~popupNotify; CustomSend entityUpdateDetail~id~{{
       title }}~65535~~~~~{{ message }}~65535~{{ timeout }}; Buzzer 2,2,2
 mode: single
 icon: mdi:message-badge

Send Message to the Panel:

nspanel_popup_notification:
 alias: Popup Notification
 sequence:
 - service: mqtt.publish
   data:
     topic: cmnd/tasmota_NsPanelTerrasse/Backlog
     payload: CustomSend pageType~popupNotify; CustomSend entityUpdateDetail~id~{{
       title }}~65535~~~~~{{ message }}~65535~{{ timeout }}
 mode: single
 icon: mdi:message-badge

Notification on screensaver

The screensaver can display Notifications by sending this command to the CustomSend topic: notify~heading~text

Send Message to the Screensaver combined with a buzzer sound:

nspanel_screensaver_notification:
 alias: Screensaver Notification
 sequence:
 - service: mqtt.publish
   data:
     topic: cmnd/tasmota_NsPanelTerrasse/Backlog
     payload: CustomSend notify~{{ heading }}~{{ message }}; Buzzer 2,2,2
 mode: single
 icon: mdi:message-badge

Send Message to the Screensaver:

nspanel_screensaver_notification:
 alias: Screensaver Notification
 sequence:
 - service: mqtt.publish
   data:
     topic: cmnd/tasmota_NsPanelTerrasse/Backlog
     payload: CustomSend notify~{{ heading }}~{{ message }}
 mode: single
 icon: mdi:message-badge

How to update

Updating involves mainly already descriped steps from installation, so this is a short summary.

This project has three main parts, on a new release you usally need to update at least two of them, the AppDaemon Backend and the firmware of the display. Sometimes there are also changes to the berry driver script on tasmota.

Note the commands in the following section will update to the current development version of this repository, use the command from release page if you want to use a release version

Update AppDaemon Script

HACS will show you that there is an update avalible and ask you to update.

Update Display Firmware

Use the following command to update or use your own webserver. If you are using a recent release you also should be able to update directly with a notification on the screen.

EU Version: FlashNextion http://nspanel.pky.eu/lui-release.tft

US Version Portrait: FlashNextion http://nspanel.pky.eu/lui-us-p-release.tft

US Version Landscape: FlashNextion http://nspanel.pky.eu/lui-us-l-release.tft

Update Tasmota Berry Driver

Since release 1.1 you can update the berry driver directly from the Tasmota Console with the following command.

UpdateDriverVersion https://raw.githubusercontent.com/joBr99/nspanel-lovelace-ui/main/tasmota/autoexec.be

FAQ - Frequently Asked Questions

Waiting for content - This is taking longer than usual on the screen

Please check your MQTT Topics in your apps.yaml and your mqtt configuration on tasmota.

How to upgrade from a release to the current development version

1. Update App in HACS to main

Click redownload in the menu of the app in HACS.

Select main version.

!!! Wait for it to load, dropdown needs to be selectable again, otherwise it will download the latest release !!!

!!! Wait for it to load, dropdown needs to be selectable again, otherwise it will download the latest release !!!

Click download.

2. Restart AppDaemon

3. Flash current Development Firmware in Tasmota Console. DO NOT USE THIS URL (only if you are on main/dev)

FlashNextion http://nspanel.pky.eu/lui.tft DO NOT USE THIS URL (only if you are on main/dev)

Development happens in the EU version, so it is possible that the US Version isn't up to date with the current development version of the EU firmware, the lastet US versions are still downloadable with the following links:

FlashNextion http://nspanel.pky.eu/lui-us-l.tft DO NOT USE THIS URL (only if you are on main/dev)

FlashNextion http://nspanel.pky.eu/lui-us-p.tft DO NOT USE THIS URL (only if you are on main/dev)
