The general idea is that the Nextion Display cycles though a page counter and the esp32 tells the display what to do. If you are changeing the page the nextion display will send and event to the esp32 and it has to answer with the messages~ that will update the current page with it's desired components. This enables easy changes~ without touching the HMI Project.

Message Flow

HomeAssistant / NodeRed -- MQTT -- Tasmota -- Nextion Screen

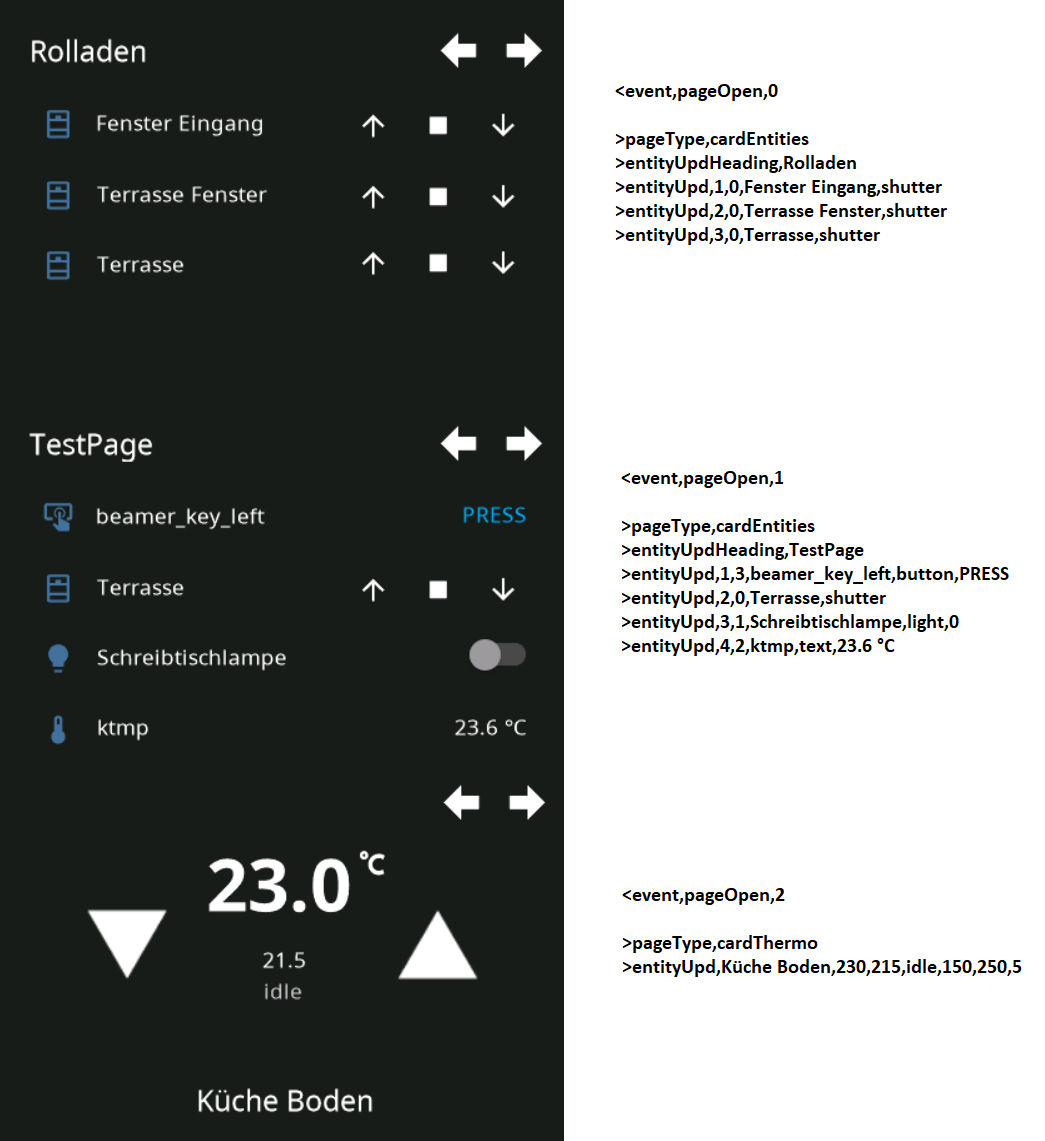

See the following picture to get an Idea for the messages send and recived from the screen during cycling though pages.

Custom Protocol

55 BB [payload length] [payload length] [payload] [crc] [crc]

Payload length contains the number of bytes of the payload.

CRC is "CRC-16 (MODBUS) Big Endian" calculated over the whole message

This protocol does not try to implement broken JSON Commands with a specified type (lol). Instead the commands are plain text commands with parameters.

Example for valid Message

This message has to be generated for the Message "1337" (1337 is not a valid command~ this is just an example)

55 BB  04 00  31 33 33 37  5F 5B

Messages to Nextion Display

The following message should be implemented on all pages

wake screen:

wake

set brightness of screensaver:

dimmode~0 - (screen off)

dimmode~100 - (screen on with full brightness)

set current time:

time~22 : 26

set current date:

date~Di 24. Februar

set screensaver timeout (set time in sec~ max 65):

timeout~15 - timeout after 15 seconds

timeout~0 - disable screensaver

change the page type:

pageType~pageStartup

pageType~cardEntities

pageType~cardThermo

pageType~cardMedia

pageType~popupLight~Schreibtischlampe~light.schreibtischlampe

pageType~popupNotify

pageType~screensaver

screensaver page

weatherUpdate~tMainIcon~tMainText~tForecast1~tF1Icon~tForecast1Val~tForecast2~tF2Icon~tForecast2Val~tForecast3~tF3Icon~tForecast3Val~tForecast4~tF4Icon~tForecast4Val~optionalLayoutIcon~optionalLayoutText

color~background~time~timeAMPM~date~tMainIcon~tMainText~tForecast1~tForecast2~tForecast3~tForecast4~tF1Icon~tF2Icon~tF3Icon~tF4Icon~tForecast1Val~tForecast2Val~tForecast3Val~tForecast4Val~bar~tMainIconAlt~tMainTextAlt~tMRIcon~tMR

cardEntities Page

The following message can be used to update the content on the cardEntities Page

entityUpd~heading~navigation~[~*type*~*internalNameEntity*~*iconId*~*iconColor*~*displayNameEntity*~*optionalValue*]x4

~light~light.entityName~1~17299~Light1~0

~shutter~cover.entityName~0~17299~Shutter2~

~delete~~~~~

~text~sensor.entityName~3~17299~Temperature~content

~button~button.entityName~3~17299~bt-name~bt-text

~switch~switch.entityName~4~17299~Switch1~0

popupLight Page

entityUpdateDetail~*iconId*~*iconColor*~*buttonState*~*sliderBrightnessPos*~*sliderColorTempPos*~*colorMode*

entityUpdateDetail~1~17299~1~100~78~enable

entityUpdateDetail~1~17299~1~100~disable

popupShutter Page

entityUpdateDetail~*ignored*~*sliderPos*

entityUpdateDetail~1~77

popupNotify Page

entityUpdateDetail~*internalName*~*tHeading*~*tHeadingColor*~*b1*~*tB1Color*~*b2*~*tB2Color*~*tText*~*tTextColor*~*sleepTimeout*

exitPopup

cardThermo Page

entityUpd~*heading*~*navigation*~*internalNameEntiy*~*currentTemp*~*destTemp*~*status*~*minTemp*~*maxTemp*~*stepTemp*[[~*iconId*~*activeColor*~*state*~*hvac_action*]]

[[]] are not part of the command~ this part repeats 9 times for the buttons

cardMedia Page

entityUpd~*heading*~*navigation*~*internalNameEntiy*~*icon*~*title*~*author*~*volume*~*playpauseicon*~currentSpeaker~speakerList-seperated-by-?

cardAlarm Page

entityUpd~*internalNameEntity*~*navigation*~*arm1*~*arm1ActionName*~*arm2*~*arm2ActionName*~*arm3*~*arm3ActionName*~*arm4*~*arm4ActionName*~*icon*~*iconcolor*~*numpadStatus*~*flashing*

Messages from Nextion Display

event,buttonPress2,pageName,bNext

event,buttonPress2,pageName,bPrev

event,buttonPress2,pageName,bExit,number_of_taps

event,buttonPress2,pageName,sleepReached

startup page

event,startup,version,model

screensaver page

event,buttonPress2,screensaver,exit - Touch Event on Screensaver

event,screensaverOpen - Screensaver has opened

cardEntities Page

event,*eventName*,*entityName*,*actionName*,*optionalValue*

event,buttonPress2,internalNameEntity,up

event,buttonPress2,internalNameEntity,down

event,buttonPress2,internalNameEntity,stop

event,buttonPress2,internalNameEntity,OnOff,1

event,buttonPress2,internalNameEntity,button

popupLight Page

event,pageOpenDetail,popupLight,internalNameEntity

event,buttonPress2,internalNameEntity,OnOff,1

event,buttonPress2,internalNameEntity,brightnessSlider,50

event,buttonPress2,internalNameEntity,colorTempSlider,50

event,buttonPress2,internalNameEntity,colorWheel,x|y

popupShutter Page

event,pageOpenDetail,popupShutter,internalNameEntity

event,buttonPress2,internalNameEntity,positionSlider,50

popupNotify Page

event,buttonPress2,*internalName*,notifyAction,yes

event,buttonPress2,*internalName*,notifyAction,no

cardThermo Page

event,buttonPress2,*entityName*,tempUpd,*temperature*

event,buttonPress2,*entityName*,hvac_action,*hvac_action*

cardMedia Page

event,buttonPress2,internalNameEntity,media-back

event,buttonPress2,internalNameEntity,media-pause

event,buttonPress2,internalNameEntity,media-next

event,buttonPress2,internalNameEntity,volumeSlider,75

cardAlarm Page

event,buttonPress2,internalNameEntity,actionName,code

Icons IDs

Please see Icon's int the icons.md file

Design Guidelines for Nextion HMI Project

Background Color is

RGB565: 6371 [18e3] (HEX: #1C1C1C, RGB: 28,28,28)

Source for Icons is the Material Design Font, used by HASPone https://github.com/HASwitchPlate/HASPone
