nspanel-lovelace-ui/docs/config-screensaver.md

Possible configuration values for screensaver config

key	optional	type	default	description
entity	True	string	weather.example	weather entity from homeassistant
entities	True	string	None	contains a list of entities of this card (will be used instead of entity)
statusIcon1	True	complex	None	status icon left to the date string, config similar to weatherOverride
statusIcon2	True	complex	None	status icon right to the date string, config similar to weatherOverride
doubleTapToUnlock	True	boolean	False	requires to tap screensaver two times
theme	True	complex		configuration for theme
defaultCard	True	string	None	default page after exiting screensaver; only works with top level cards defined in cards; needs to be a navigation item, see subpages (navigate.type_key) This config option will also be evaluated as a HomeAssistant Template.
key	True	string	None	Used by navigate items
type	True	string	screensaver	screensaver or screensaver2

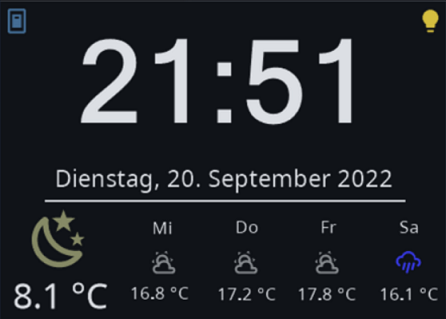

Example for the a screensaver config with custom entities/overrides:

    screensaver:
      entities:
        - entity: weather.demo_weather_north
        - entity: weather.demo_weather_north
          type: 0
        - entity: weather.demo_weather_north
          type: 1
        - entity: weather.demo_weather_north
          type: 2
        - entity: sensor.energy_usage

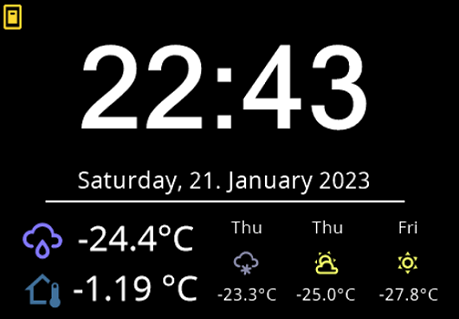

Using a 6th entity will automatically activate the alternative layout.

    screensaver:
      entities:
        - entity: weather.demo_weather_north
        - entity: weather.demo_weather_north
          type: 0
        - entity: weather.demo_weather_north
          type: 1
        - entity: sensor.energy_usage
        - entity: delete
        - entity: sensor.indoor_temp
          icon: mdi:home-thermometer-outline

You can use override the options described on the entities documentation page to override colors, names or values of the entities.

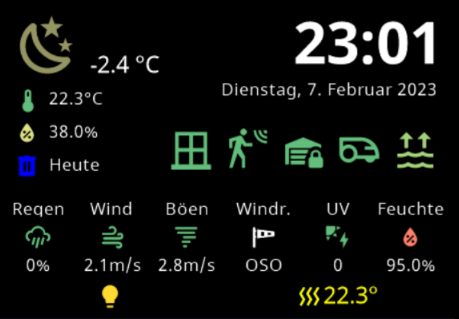

With Version 4.0.0 there is another alternative layout for the screensaver:

Configuration is similar, you just need to add type: screensaver2 to switch the layout.

    screensaver:
	  type: screensaver2
      entities:
        - entity: weather.demo_weather_north

Possible configuration values for screensaver theme config (only normal screensaver layout not screensaver2)

key	option	type	default	description
background	True	list	Black	[R, G, B]
time	True	list	White	[R, G, B]
timeAMPM	True	list	White	[R, G, B]
date	True	list	White	[R, G, B]
tMainText	True	list	White	[R, G, B]
tForecast1	True	list	White	[R, G, B]
tForecast2	True	list	White	[R, G, B]
tForecast3	True	list	White	[R, G, B]
tForecast4	True	list	White	[R, G, B]
tForecast1Val	True	list	White	[R, G, B]
tForecast2Val	True	list	White	[R, G, B]
tForecast3Val	True	list	White	[R, G, B]
tForecast4Val	True	list	White	[R, G, B]
bar	True	list	White	[R, G, B]
tMainTextAlt2	True	list	White	[R, G, B]
tTimeAdd	True	list	White	[R, G, B]

Specify colours as red green and blue values from 0-255 e.g. [255, 0, 0] for red or [0, 0, 255] for blue. These are translated internally to RGB565 (note that this has lower color depth so the colours may not appear the same). Also note that the screen has a low contrast ratio, so colors look sigificantly different at full display brightness and lowest brightness.

Example for the theme config:

    screensaver:
      theme:
        date: [255, 0, 0]

Config Example for configured statusIcons

``` screensaver: entity: weather.k3ll3r statusIcon1: entity: switch.example_item statusIcon2: entity: binary_sensor.example_item ```

It is possible to increase the size of the font used for the icons by adding altFont: True to the statusIcon configuration. Icon/Color Overrides are also possible like on any other Entity.

Config Example for configured statusIcons with increased size of the icons

``` screensaver: entity: weather.k3ll3r statusIcon1: entity: switch.example_item altFont: True statusIcon2: entity: binary_sensor.example_item altFont: True ```

Config Example for all white icons on screensaver

``` screensaver: entities: - entity: weather.demo_weather_north - entity: weather.demo_weather_north type: 0 color: [255,255,255] - entity: weather.demo_weather_north type: 1 color: [255,255,255] - entity: weather.demo_weather_north type: 2 color: [255,255,255] - entity: weather.demo_weather_north type: 3 color: [255,255,255] ```

Config Example for a custom date format on forecast

``` screensaver: entities: - entity: weather.demo_weather_north - entity: weather.demo_weather_north type: 0 name: "%a %-d/%-m" - entity: weather.demo_weather_north type: 1 name: "%a %-d/%-m" - entity: weather.demo_weather_north name: "%a %-d/%-m" type: 2 - entity: weather.demo_weather_north name: "%a %-d/%-m" type: 3 ```

See Babel Documentation (https://babel.pocoo.org/en/latest/dates.html#date-fields) or the Python Documenation (https://docs.python.org/3/library/datetime.html#strftime-and-strptime-format-codes) in case you do not have babel installed.
