nspanel-lovelace-ui/docs/card-power.md

Power Card (v3.9 and higher)

    cards:
      - type: cardPower
        title: Power Test
        entities:
          - entity: sensor.today_energy
          - entity: delete
          - entity: sensor.today_energy
            speed: 30
          - entity: sensor.today_energy
            speed: -10
          - entity: sensor.today_energy
            speed: -20
          - entity: sensor.today_energy
            speed: -30
          - entity: sensor.today_energy
            speed: 10
          - entity: sensor.today_energy
            speed: 10

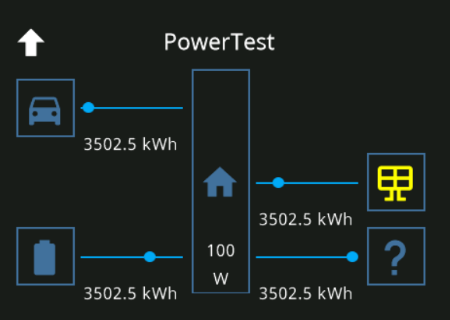

The first two entities are shown in the middle of the card, all other entities are used around it.

List of supported config keys of this card:

key	optional	type	default	description
type	False	string	None	Type of the card
entities	False	complex	None	contains entities of the card
title	True	string	None	Title of the Page
key	True	string	None	Used by navigate items

List of supported entitiy types for this page:

• sensor

Some details about speed:

It is possible to calculate the speed through a Home Assistant template, this allows to calculate the speed in relation to other data in Home Assistant.

This template will calculate a speed setting based on the amount of power drawn on a device as a fraction of the total power usage.

            speed: >-
              {% set entity_power = states('sensor.appliance_water_heater_power') |float | round(3)%}
              {% set total_power = states('sensor.ams_power_active') | float | round(3) %}
              {% set entity_usage = (entity_power / total_power * 100) | float %}
              {{ (entity_usage | round()) * -1 }}

It provides the number as a negative integer, making the dot move from the centre of the card toward the icon of your entity. If you want the dot to move towards the centre of the card, just skip inverting it at the end of the template like this:

              {{ (entity_usage | round()) }}
