# NSPanel Lovelace UI If you like this project consider buying me a pizza 🍕 [![hacs_badge](https://img.shields.io/badge/HACS-Default-41BDF5.svg)](https://github.com/hacs/integration) ![hacs validation](https://github.com/joBr99/nspanel-lovelace-ui/actions/workflows/hacs-validation.yaml/badge.svg) [![Man Hours](https://img.shields.io/endpoint?url=https%3A%2F%2Fmh.jessemillar.com%2Fhours%3Frepo%3Dhttps%3A%2F%2Fgithub.com%2FjoBr99%2Fnspanel-lovelace-ui.git)](https://jessemillar.com/r/man-hours) NsPanel Lovelace UI is a Firmware for the nextion screen inside of NSPanel in the Design of [HomeAssistant](https://www.home-assistant.io/)'s Lovelace UI Design. **EU Model and US Model supported (in portrait and landscape orientation)** Content of the screen is controlled by a AppDaemon Python Script installed on your HomeAssistant Instance. Or an TypeScript on your ioBroker Instance in case you are an ioBroker User. NsPanel needs to be flashed with Tasmota (or upcoming with ESPHome) ## Features - Entities Page with support for cover, switch, input_boolean, binary_sensor, sensor, button, number, scenes, script, input_button and light, input_text (read-only), lock, fan - Grid Page with support for cover, switch, input_boolean, button, scenes, light and lock - Detail Pages for Lights (Brightness, Temperature and Color of the Light) and for Covers (Position) - Thermostat Page - Media Player Card - Alarm Control Panel - Screensaver Page with Time, Date and Weather Information - Localization possible (currently 38 languages) - **Everything is dynamically configurable by a yaml config, no need to code or touch Nextion Editor** It works with [Tasmota](https://tasmota.github.io/docs/) and MQTT. To control the panel and update it with content from HomeAssistant there is an [AppDaemon](https://github.com/AppDaemon/appdaemon) App. See the following picture to get an idea of the look of this firmware for NSPanel. ![screens](doc-pics/screens.png) Some (not all) screenshots from the US Portrait Version: ![screens-us-p](doc-pics/screens-us-p.png) ## TLDR 1. Install Tasmota to NSPanel 2. Install Berry Driver in Tasmota and setup MQTT 3. Flash Nextion Firmware 4. Install AppDaemon, setup MQTT and install Backend Application For more detailed Instructions see the following Sections: - [Requirements](#requirements) - [Installation - Home Automation Part (Home Assistant)](#installation---home-automation-part-home-assistant) - [Installation - Home Automation Part (IoBroker)](#installation---home-automation-part-iobroker) - [Installation - NSPanel Part (Firmware)](#installation---nspanel-part) - [Configuration](#configuration) - [Configuring the MQTT integration in AppDaemon](#configuring-the-mqtt-integration-in-appdaemon) - [Configure your NSPanel in AppDaemon](#configure-your-nspanel-in-appdaemon) - [How to update](#how-to-update) - [FAQ](#faq---frequently-asked-questions) ## Requirements - NSPanel - USB to Serial TTL Adapter - Running Instance of the Home Automation Platform of your Choise - Running [Home Assistant Instance](https://www.home-assistant.io/installation/) - with installed [MQTT Broker](https://www.home-assistant.io/docs/mqtt/broker) - Running [ioBroker Instance](https://www.iobroker.net/#en/documentation) - with installed MQTT Broker ## Installation - Home Automation Part (Home Assistant) This section describes the Installation Steps for HomeAssistant, follow each step.
1. Installing HomeAssiant Add-Ons

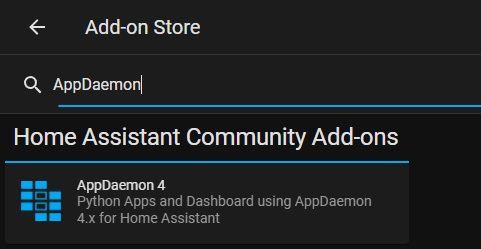

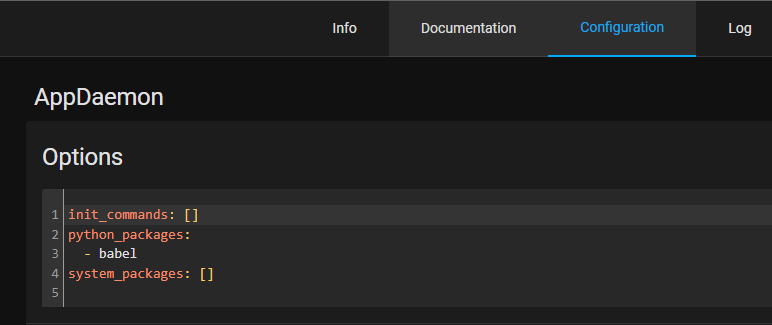

### Installing AppDaemon The backend application for HomeAssistant is written in a python for [AppDaemon](https://github.com/AppDaemon/appdaemon). This means it requires a working and running installation of AppDaemon. The easiest way to install it is through Home Assistant's Supervisor Add-on Store, it will be automaticly connected to your Home Assistant Instance. ![hass-add-on-store](doc-pics/hass-add-on-store.png) #### Add babel package to AppDaemon Container (Optional) For localisation (date in your local language) you need to add the python package babel to your AppDaemon Installation. ![appdaemon-babel](doc-pics/appdaemon-babel.png) ### Installing Studio Code Server (optional, recommended) You will need a way to edit the `apps.yaml` config file in the Appdaemon folder. Install Studio Code Server from Home Assistant's Supervisor Add-on Store to easily edit configuration Files on your HomeAssistant Instance.

2. Installing HomeAssiant Community Store

### Installing HACS HACS is the Home Assistant Community Store and allows for community integrations and automations to be updated cleanly and easily from the Home Assistant web user interface. It's simple to install the AppDaemon app without HACS, but keeping up to date requires manual steps that HACS will handle for you: you will be notified of updates, and they can be installed by a click on a button. If you want to use HACS, you will have to follow [their documentation on how to install HACS](https://hacs.xyz/docs/setup/download).

3. Installing Lovelace AppDaemon Backend Application

### Installing AppDaemon Backend Application To install Lovelace UI Backend App with HACS, you will need to make sure that you enabled AppDaemon automations in HACS, as these are not enabled by default: 1. Click on `Configuration` on the left menu bar in Home Assistant Web UI 2. Select `Devices & Services` 3. Select `Integrations` 4. Find `HACS` and click on `Configure` 5. In the window that opens, make sure that `Enable AppDaemon apps discovery & tracking` is checked, or check it and click `Submit` 6. If you just enabled this (or just installed HACS), you might have to wait a few minutes as all repositories are being fetched; you might hit a GitHub rate limit, which might then require you to wait a few hours for HACS to be fully configured. In this case, you won't be able to proceed to the next steps until HACS is ready. Now, to install NSPanel Lovelace UI Backend with HACS, follow these steps: 1. Click on `HACS` on the left menu bar in Home Assistant Web UI 2. Click on `Automations` in the right panel 3. Click on `Explore & download repositories` in the bottom right corner 4. Search for `NSPanel`, and click on `NSPanel Lovelace UI Backend` in the list that appears 5. In the bottom right corner of the panel that appears, click on `Download this repository with HACS` 6. A confirmation panel will appear, click on `Download`, and wait for HACS to proceed with the download 7. The Backend Application is now installed, and HACS will inform you when updates are available

## Installation - Home Automation Part (IoBroker) If you are looking for an ioBroker Integration instead of HomeAssistant take a look into the [Readme](ioBroker/README.md) of the iobroker folder. Thanks to [britzelpuf](https://github.com/britzelpuf) for this integration. ## Installation - NSPanel Part This section describes how to free your nspanel from stock firmware and get it ready for Lovelace UI 🎉 You only need to do one **Tasmota** OR **ESPHome**
Installation Instructions for Tasmota (Recommended)

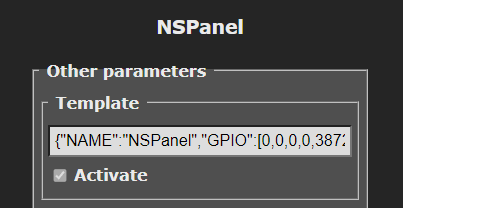

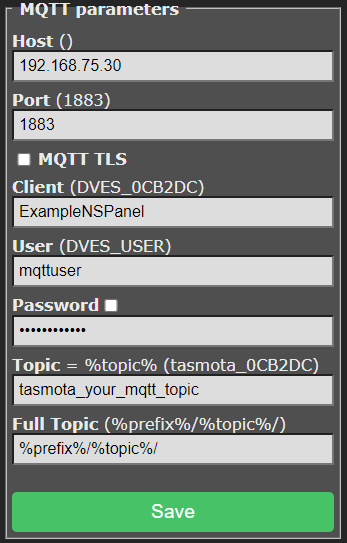

### Flash Tasmota to your NSPanel You need to connect to your nspanel via serial and flash the [tasmota32-nspanel.bin](https://github.com/tasmota/install/raw/main/firmware/unofficial/tasmota32-nspanel.bin) to your NSPanel. Make sure to come back to this guide, before uploading the nspanel.be/autoexec.be files. For more deatils see the [NSPanel Page of the Tasmota Template Repository](https://templates.blakadder.com/sonoff_NSPanel.html). ### Configure Tasmota Template for NSPanel Configure the NSPanel template for Tasmota. (Go to Configuration and Configure Other and paste the template there, make sure to tick the activate checkbox) ![tasmota-template-config](doc-pics/tasmota-template-config.png) You can use the following template or copy the one on the [Tasmota Template Repo Site](https://templates.blakadder.com/sonoff_NSPanel.html). `{"NAME":"NSPanel","GPIO":[0,0,0,0,3872,0,0,0,0,0,32,0,0,0,0,225,0,480,224,1,0,0,0,33,0,0,0,0,0,0,0,0,0,0,4736,0],"FLAG":0,"BASE":1,"CMND":"ADCParam 2,11200,10000,3950 | Sleep 0 | BuzzerPWM 1"}` After a reboot of tasmota your screen will light up with the stock display firmware. ### Setup your MQTT Server in Tasmota Configure your MQTT Server in Tasmota. See Tasmota [MQTT Documentation](https://tasmota.github.io/docs/MQTT/) for more details. ![tasmota-mqtt-config](doc-pics/tasmota-mqtt-config.png) ### Upload Berry Driver to Tasmota 1. Download the autoexec.be from the repository: [Berry Driver](tasmota/autoexec.be) 2. Go to `Consoles` > `Manage File System` in Tasmota and upload the previously downloaded file. 3. Restart your NSPanel ### Flash Firmware to Nextion Screen Note for ioBroker Users: Check the Release Notes, if the ioBroker Backend is not up to date with the current release there will be a note and you have to flash the latest compatible version from there. #### Use your own Webserver Upload the nspanel.tft from the lastest release to a Webserver (for example www folder of Home Assistant) and execute the following command in Tasmota Console. (Development Version: [tft file from HMI folder](HMI/nspanel.tft)) **Webserver must be HTTP, HTTPS is not supported, due to limitations of berry lang on tasmota** `FlashNextion http://ip-address-of-your-homeassistant:8123/local/nspanel.tft` #### Use my webserver Due the limitations of Berry, it's not possible to download the tft file directly from github, so I'm also renting a small server where you can download the file via HTTP. Use the one following commands to flash the latest release from this repository, just execute the following Command in Tasmota: EU Version: `FlashNextion http://nspanel.pky.eu/lui-release.tft` US Version Portrait: `FlashNextion http://nspanel.pky.eu/lui-us-p-release.tft` US Version Landscape: `FlashNextion http://nspanel.pky.eu/lui-us-l-release.tft`

Installation Instructions for ESPHome

Support for ESPHome is WIP, see this third-party [ESPHome component](https://github.com/sairon/esphome-nspanel-lovelace-ui) which allows using ESPHome instead of Tasmota.

## Configuration ### Configuring the MQTT integration in AppDaemon For the app to work you need a working MQTT Configuration in AppDaemon. Please add the configuration of your mqtt server, user and password to your existing `appdaemon.yaml` NOTE: This are not the options of the AppDaemon Addon in HomeAssistant. You will find this file under: `config/appdaemon/appdeamon.yaml` ```yaml --- secrets: /config/secrets.yaml appdaemon: latitude: 52.0 longitude: 4.0 elevation: 2 time_zone: Europe/Berlin plugins: HASS: type: hass MQTT: type: mqtt namespace: mqtt client_id: "appdaemon" client_host: 192.168.75.30 client_port: 1883 client_user: "mqttuser" client_password: "mqttpassword" client_topics: NONE http: url: http://127.0.0.1:5050 admin: api: hadashboard: ``` Please see [appdaemon.yaml](appdaemon/appdaemon.yaml) as an exmaple. ### Configure your NSPanel in AppDaemon Confiure your NSPanel as you like, you need to edit the `apps.yaml` inside of your Appdaemon config folder. You can have multiple nspanel sections. There are some more exmaples in the appdaemon folder of this repo. ```yaml --- nspanel-1: module: nspanel-lovelace-ui class: NsPanelLovelaceUIManager config: panelRecvTopic: "tele/tasmota_your_mqtt_topic/RESULT" panelSendTopic: "cmnd/tasmota_your_mqtt_topic/CustomSend" updateMode: "auto-notify" sleepTimeout: 20 #sleepBrightness: 10 sleepBrightness: - time: "7:00:00" value: 10 - time: "23:00:00" value: 0 locale: "de_DE" # used for translations in translations.py and for localized date if babel python package is installed screensaver: entity: weather.k3ll3r cards: - type: cardEntities entities: - entity: switch.example_item name: NameOverride icon: lightbulb - entity: light.example_item - entity: cover.example_item - entity: input_boolean.example_item title: Example Entities 1 - type: cardEntities entities: - entity: switch.example_item - entity: delete - entity: cover.example_item - entity: input_boolean.example_item title: Example Entities 2 - type: cardEntities entities: - entity: binary_sensor.example_item - entity: sensor.example_item - entity: button.example_item - entity: number.example_item title: Example Entities 3 - type: cardEntities entities: - entity: scenes.example_item - entity: script.example_item - entity: button.example_item - entity: input_button.example_item title: Example Entities 4 - type: cardGrid entities: - entity: light.example_item - entity: switch.example_item - entity: delete - entity: button.example_item - entity: cover.example_item - entity: delete # delete at the end is optional title: Exmaple Gird - type: cardThermo entity: climate.example_item - type: cardMedia entity: media_player.example_item - type: cardAlarm entity: alarm_control_panel.alarmo ``` key | optional | type | default | description -- | -- | -- | -- | -- `module` | False | string | | The module name of the app. `class` | False | string | | The name of the Class. `config` | False | complex | | Config/Mapping between Homeassistant and your NsPanel ### Possible configuration values for config key key | optional | type | default | description -- | -- | -- | -- | -- `panelRecvTopic` | False | string | `tele/tasmota_your_mqtt_topic/RESULT` | The mqtt topic used to receive messages. `panelSendTopic` | False | string | `cmnd/tasmota_your_mqtt_topic/CustomSend` | The mqtt topic used to send messages. `updateMode` | True | string | `auto-notify` | Update Mode; Possible values: "auto", "auto-notify", "manual" `model` | True | string | `eu` | Model; Possible values: "eu", "us-l" and "us-p" `sleepTimeout` | True | integer | `20` | Timeout for the screen to enter screensaver, to disable screensaver use 0 `sleepBrightness` | True | integer/complex | `20` | Brightness for the screen to enter screensaver, see example below for complex/scheduled config. `sleepTracking` | True | string | None | Forces screensaver brightness to 0 in case entity state is not_home or off, can be a group, person or device_tracker entity. `locale` | True | string | `en_US` | Used by babel to determinante Date format on screensaver, also used for localization. `dateFormatBabel` | True | string | `full` | formatting options on https://babel.pocoo.org/en/latest/dates.html?highlight=name%20of%20day#date-fields `timeFormat` | True | string | `%H:%M` | Time Format on screensaver. Substring after `?` is displayed in a seperate smaller textbox. Useful for 12h time format with AM/PM `"%I:%M ?%p"` `dateFormat` | True | string | `%A, %d. %B %Y` | date format used if babel is not installed `cards` | False | complex | | configuration for cards that are displayed on panel `screensaver` | True | complex | | configuration for screensaver `hiddenCards` | True | complex | | configuration for cards that can be accessed though navigate items
Possible languages for locale config key

- `af_xx` - Afrikaans - `ar_xx` - Arabic - `bg_xx` - Bulgarian - `ca_xx` - Catalan - `cs_xx` - Czech - `da_xx` - Danish - `de_xx` - German - `el_xx` - Greek - `en_xx` - English - `es_xx` - Spanish - `et_xx` - Estonian - `fa_xx` - Persian - `fi_xx` - Finnish - `fr_xx` - French - `he_xx` - Hebrew - `hr_xx` - Croatian - `hu_xx` - Hungarian - `hy_xx` - Armenian - `id_xx` - Indonesian - `is_xx` - Icelandic - `it_xx` - Italian - `lb_xx` - Luxembourgish - `lt_xx` - Lithuanian - `lv_xx` - Latvian - `nb_xx` - Norwegian - `nl_xx` - Dutch - `nn_xx` - Norwegian - `pl_xx` - Polish - `pt_xx` - Portuguese - `ro_xx` - Romanian - `ru_xx` - Russian - `sk_xx` - Slovak - `sl_xx` - Slovenian - `sv_xx` - Swedish - `th_xx` - Thai - `tr_xx` - Turkish - `uk_xx` - Ukrainian - `vi_xx` - Vietnamese

#### Possible configuration values for a card in card config key | optional | type | default | description -- | -- | -- | -- | -- `type` | False | string | `None` | Used by navigate items `entities` | False | complex | `None` | contains entities of the card, applys only to cardEntities and cardGrid `title` | True | string | `None` | Title of the Page `entity` | False | string | `None` | contains the entity of the current card, valid for cardThermo, cardAlarm and cardMedia `key` | True | string | `None` | Used by navigate items #### Possible configuration values for screensaver config key | optional | type | default | description -- | -- | -- | -- | -- `entity` | True | string | `weather.example` | weather entity from homeassistant `weatherUnit` | True | string | `celsius` | unit for temperature, valid values are `celsius` or `fahrenheit` `weatherOverrideForecast1` | True | complex | `None` | sensor entity from home assistant here to override the first weather forecast item on the screensaver `weatherOverrideForecast2` | True | complex | `None` | sensor entity from home assistant here to override the second weather forecast item on the screensaver `weatherOverrideForecast3` | True | complex | `None` | sensor entity from home assistant here to override the third weather forecast item on the screensaver `weatherOverrideForecast4` | True | complex | `None` | sensor entity from home assistant here to override the forth weather forecast item on the screensaver `doubleTapToUnlock` | True | boolean | `False` | requires to tap screensaver two times `alternativeLayout` | True | boolean | `False` | alternative layout with humidity `defaultCard` | True | string | `None` | default page after exiting screensaver; only works with top level cards defined in cards; needs to be a navigation item, see subpages (navigate.type_key) `key` | True | string | `None` | Used by navigate items Example for the weatherOverride config options: ```yaml weatherOverrideForecast4: entity: sensor.example_item name: name icon: lightbulb ``` #### Schedule sleep brightness It is possible to schedule a brightness change for the screen at specific times. ```yaml sleepBrightness: - time: "7:00:00" value: 10 - time: "23:00:00" value: 0 ``` ```yaml sleepBrightness: - time: "sunrise" value: 10 - time: "sunset + 1:00:00" value: 0 ``` #### Override Icons or Names To override Icons or Names of entities you can configure an icon and/or name in your configuration, please see the following example. Only the icons listed in the [Icon Cheatsheet](https://htmlpreview.github.io/?https://github.com/joBr99/nspanel-lovelace-ui/blob/main/HMI/icon-cheatsheet.html) are useable. ```yaml entities: - entity: light.test_item name: NameOverride icon: lightbulb ``` #### Subpages You can configure entities with with the prefix `navigate`, that are navigating to cards, in case it's hidden card, the navigation items will change and the arrow is bringing you back to the privious page. ```yaml - entity: navigate.cardGrid_testKey ``` will allow you to navigate to a cardGrid page with the configured key testKey ```yaml hiddenCards: - type: cardGrid title: Exmaple Grid entities: - entity: light.test_item key: testKey ``` ## How to update Updating involves mainly already descriped steps from installation, so this is a short summary. This project has three main parts, on a new release you usally need to update at least two of them, the AppDaemon Backend and the firmware of the display. Sometimes there are also changes to the berry driver script on tasmota. *Note the commands in the following section will update to the current development version of this repository, use the command from release page if you want to use a release version* ### Update AppDaemon Script HACS will show you that there is an update avalible and ask you to update. ### Update Display Firmware Use the following command to update or use your own webserver. If you are using a recent release you also should be able to update directly with a notification on the screen. EU Version: `FlashNextion http://nspanel.pky.eu/lui-release.tft` US Version Portrait: `FlashNextion http://nspanel.pky.eu/lui-us-p-release.tft` US Version Landscape: `FlashNextion http://nspanel.pky.eu/lui-us-l-release.tft` ### Update Tasmota Berry Driver Since release 1.1 you can update the berry driver directly from the Tasmota Console with the following command. `UpdateDriverVersion https://raw.githubusercontent.com/joBr99/nspanel-lovelace-ui/main/tasmota/autoexec.be` ## FAQ - Frequently Asked Questions ### Flashing of the Display Firmware with FlashNextion doesn't work 1. Make sure to use the [tasmota32-nspanel.bin](https://github.com/tasmota/install/raw/main/firmware/unofficial/tasmota32-nspanel.bin) Tasmota build. 2. Make sure to use HTTP and **not HTTPS** ### Waiting for content - This is taking longer than usual on the screen Please check your MQTT Topics in your apps.yaml and your mqtt configuration on tasmota. ### How to upgrade from a release to the current development version 1. Update App in HACS to main Click redownload in the menu of the app in HACS. Select main version. ![hacs-main](doc-pics/hacs-main.png) **Wait for it to load, dropdown needs to be selectable again** Click download. 2. Restart AppDaemon 3. Flash current Development Firmware in Tasmota Console. `FlashNextion http://nspanel.pky.eu/lui.tft` Development happens in the EU version, so it is possible that the US Version isn't up to date with the current development version of the EU firmware, the lastet US versions are still downloadable with the following links: `FlashNextion http://nspanel.pky.eu/lui-us-l.tft` `FlashNextion http://nspanel.pky.eu/lui-us-p.tft`
