Add-on: Climate

Description

This add-on enables the use of your panel's relays to act as a thermostat (either cooler or heater) using the internal temperature sensor and independent of the network availability.

Attention

The NSPanel is limited to 2A per relay. Don't use it for directly power your cooler/heater if exceeding the panel specifications:
- 150W/110V/Gang, 300W/110V/Total
- 300W/220V/Gang, 600W/220V/Total
A target temperature must be set on the climate entity in Home Assistant or the page Climate in your panel.

Note

More details on the Sonoff NSPanel's page and the product specifications document.

Installation

You will need to add the reference to addon_climate_heat, addon_climate_cool or addon_climate_dual files on your ESPHome settings in the package section and after the remote_package (base code), as shown bellow (for heat in this example):

Note

From time to time, there are changes in ESPHome that lead to an added _2 for the embedded thermostats. If you encounter this issue, please have a look at this entry in the Home Assistent Forum.

substitutions:
  # Settings - Editable values
  device_name: "YOUR_NSPANEL_NAME"
  friendly_name: "Your panel's friendly name"
  wifi_ssid: !secret wifi_ssid
  wifi_password: !secret wifi_password

  # Add-on configuration (if needed)
  ## Add-on climate
  heater_relay: "1"  # Possible values: "1" or "2"

# Customization area
##### My customization - Start #####
##### My customization - End #####

# Basic and optional configurations
packages:
  remote_package:
    url: https://github.com/Blackymas/NSPanel_HA_Blueprint
    ref: main
    files:
      - nspanel_esphome.yaml # Basic package
      # Optional advanced and add-on configurations
      # - esphome/nspanel_esphome_advanced.yaml
      # - nspanel_esphome_addon_climate_cool.yaml
      - nspanel_esphome_addon_climate_heat.yaml
      # - nspanel_esphome_addon_climate_dual.yaml
    refresh: 300s

Configuration

The following keys are available to be used in your substitutions:

Key	Required	Supported values	Default	Description
cooler_relay	Mandatory for cool and dual	`1` or `2`	`0` (disabled)	Relay used for control the cooler. User `1` for "Relay 1" or `2` for "Relay 2".
heater_relay	Mandatory for heat and dual	`1` or `2`	`0` (disabled)	Relay used for control the heater. User `1` for "Relay 1" or `2` for "Relay 2".
temp_units	Optional	`°C` or `°F`	`°C`	Temperature unit.
min_off_time	Optional	Positive integer representing the number of seconds	`300`	Minimum duration (in seconds) the cooling/heating action must be disengaged before it may be engaged.
min_run_time	Optional	Positive integer representing the number of seconds	`300`	Minimum duration (in seconds) the cooling/heating action must be engaged before it may be disengaged.
min_idle_time	Optional	Positive integer representing the number of seconds	`30`	Minimum duration (in seconds) the idle action must be active before calling another climate action.
target_low	Optional	Number representing a temperature in the selected unit	`18`	The initial lower treshold for the target temperature.
target_high	Optional	Number representing a temperature in the selected unit	`24`	The initial higher treshold for the target temperature.
temp_min	Optional	Number representing a temperature in the selected unit	cool: `15` heat: `7` dual: `7`	The minimum temperature the climate device can reach. Used to set the range of the frontend gauge.
temp_max	Optional	Number representing a temperature in the selected unit	cool: `45` heat: `35` dual: `45`	The maximum temperature the climate device can reach. Used to set the range of the frontend gauge.
temp_step	Optional	Number representing a temperature in the selected unit	`0.5`	The granularity with which the target temperature can be controlled.
cool_deadband	Optional	Number representing a temperature hysteresis in the selected unit	`0.5`	The minimum temperature differential (temperature above the set point) before engaging cooling.
cool_overrun	Optional	Number representing a temperature hysteresis in the selected unit	`0.5`	The minimum temperature differential (cooling beyond the set point) before disengaging cooling.
heat_deadband	Optional	Number representing a temperature hysteresis in the selected unit	`0.5`	The minimum temperature differential (temperature below the set point) before engaging heat.
heat_overrun	Optional	Number representing a temperature hysteresis in the selected unit	`0.5`	The minimum temperature differential (heating beyond the set point) before disengaging heat.

All values must be delimited with ""
For more details on the keys, please take a look at ESPHome Base Climate Configurations and ESPHome Climate Thermostat - Additional actions behavior.

Examples

Cooler

substitutions:
  # Settings - Editable values
  device_name: "YOUR_NSPANEL_NAME"
  friendly_name: "Your panel's friendly name"
  wifi_ssid: !secret wifi_ssid
  wifi_password: !secret wifi_password

  # Add-on configuration (if needed)
  ## Add-on climate
  cooler_relay: "1"     # Possible values: "1" or "2"
  temp_units: "°F"      # Temperatures in Fahrenheit
  temp_min: "40"        # Min supported temperature is 40°F
  temp_max: "80"        # Max supported temperature is 80°F
  temp_step: "1"        # Temperature granularity is 1°F
  cool_deadband: "1.2"  # Temperature delta before engaging cooling
  cool_overrun: "1.2"   # Temperature delta before disengaging cooling

# Customization area
##### My customization - Start #####
##### My customization - End #####

# Basic and optional configurations
packages:
  remote_package:
    url: https://github.com/Blackymas/NSPanel_HA_Blueprint
    ref: main
    files:
      - nspanel_esphome.yaml # Basic package
      # Optional advanced and add-on configurations
      # - esphome/nspanel_esphome_advanced.yaml
      - nspanel_esphome_addon_climate_cool.yaml
      # - nspanel_esphome_addon_climate_heat.yaml
      # - nspanel_esphome_addon_climate_dual.yaml
    refresh: 300s

Heater

substitutions:
  # Settings - Editable values
  device_name: "YOUR_NSPANEL_NAME"
  friendly_name: "Your panel's friendly name"
  wifi_ssid: !secret wifi_ssid
  wifi_password: !secret wifi_password

  # Add-on configuration (if needed)
  ## Add-on climate
  heater_relay: "1"     # Possible values: "1" or "2"
  temp_units: "°F"      # Temperatures in Fahrenheit
  temp_min: "40"        # Min supported temperature is 40°F
  temp_max: "80"        # Max supported temperature is 80°F
  temp_step: "1"        # Temperature granularity is 1°F
  heat_deadband: "1.2"  # Temperature delta before engaging heat
  heat_overrun: "1.2"   # Temperature delta before disengaging heat

# Customization area
##### My customization - Start #####
##### My customization - End #####

# Basic and optional configurations
packages:
  remote_package:
    url: https://github.com/Blackymas/NSPanel_HA_Blueprint
    ref: main
    files:
      - nspanel_esphome.yaml # Basic package
      # Optional advanced and add-on configurations
      # - esphome/nspanel_esphome_advanced.yaml
      # - nspanel_esphome_addon_climate_cool.yaml
      - nspanel_esphome_addon_climate_heat.yaml
      # - nspanel_esphome_addon_climate_dual.yaml
    refresh: 300s

Dual

substitutions:
  # Settings - Editable values
  device_name: "YOUR_NSPANEL_NAME"
  friendly_name: "Your panel's friendly name"
  wifi_ssid: !secret wifi_ssid
  wifi_password: !secret wifi_password

  # Add-on configuration (if needed)
  ## Add-on climate
  heater_relay: "1"     # Possible values: "1" or "2"
  cooler_relay: "2"     # Possible values: "1" or "2"
  temp_units: "°F"      # Temperatures in Fahrenheit
  temp_min: "40"        # Min supported temperature is 40°F
  temp_max: "80"        # Max supported temperature is 80°F
  temp_step: "1"        # Temperature granularity is 1°F
  cool_deadband: "1.2"  # Temperature delta before engaging cooling
  cool_overrun: "1.2"   # Temperature delta before disengaging cooling
  heat_deadband: "1.2"  # Temperature delta before engaging heat
  heat_overrun: "1.2"   # Temperature delta before disengaging heat

# Customization area
##### My customization - Start #####
##### My customization - End #####

# Basic and optional configurations
packages:
  remote_package:
    url: https://github.com/Blackymas/NSPanel_HA_Blueprint
    ref: main
    files:
      - nspanel_esphome.yaml # Basic package
      # Optional advanced and add-on configurations
      # - esphome/nspanel_esphome_advanced.yaml
      # - nspanel_esphome_addon_climate_cool.yaml
      # - nspanel_esphome_addon_climate_heat.yaml
      - nspanel_esphome_addon_climate_dual.yaml
    refresh: 300s

Concrete example: (Water) underfloor heating

The NSPanel is particularly nice as a replacement for existing water underfloor heating controllers. They are installed at approximately eye level and (often) supplied by 230V. In my case, the valve is type 'normally closed,' i.e. an open relay corresponds to 'no heating.' I am using relay #1. Please note that this is not a PID controller, but simply on-off. At a certain value, the heating starts and at another value it switches off again. These value were set to 0.3°C below and 0.1°C above the setpoint, respectively. It turned out that 0.3and 0.1 worked well for all off our 4 rooms. The minimum settable value is 15°C, the maximum 22°C and the granularity (step size) is 0.1°C. In addition, I chose to set the default temperature to 21.2°C.

 ##### addon-configuration #####
  ## addon_climate ##
  heater_relay: "1" #Use relay 1
  temp_min: "15"
  temp_max: "22"
  temp_step: "0.1"
  cold_tolerance: "0.3"
  hot_tolerance: "0.1"

  ##### CHANGE ME END #####
climate:
  - id: !extend thermostat_embedded
    preset:
      - name: Home
        default_target_temperature_low: 21.2
        mode: "heat"

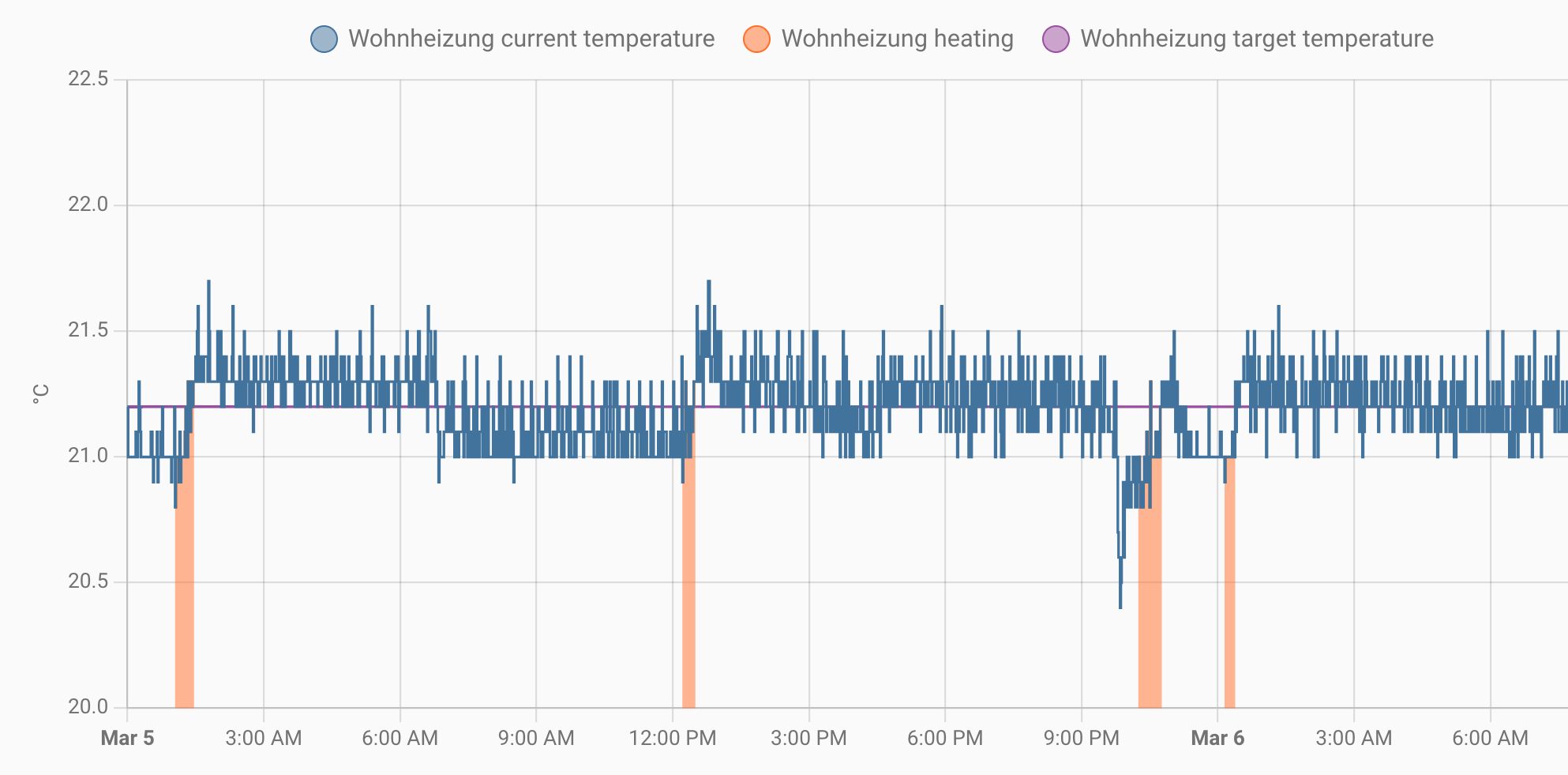

Please note, that any filter that smoothes the temperature readings (e.g. averaging) is discouraged since it slows the response times of the already slow underwater floor heater. The temperature stability is quite nice which can be seen in the following viewgraph.

Mar 5 at approx. 9.30am, the window was opened and all heaters were set to 'off.'
